Chhattisgarh State Power Transmission Company Limited (CSPTCL)

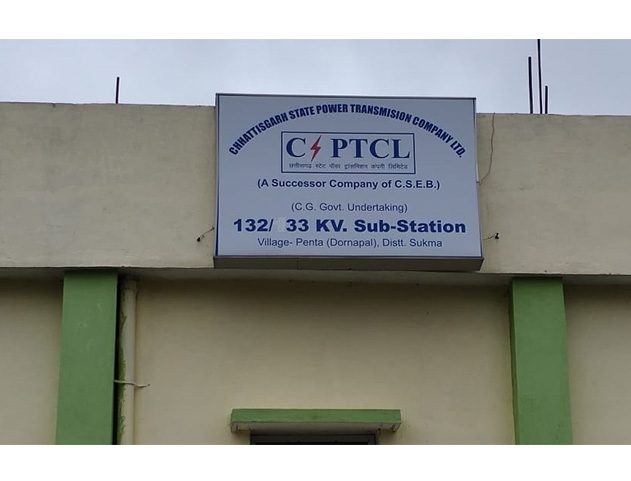

  • Customer : Chhattisgarh State Power Transmission Company Limited (CSPTCL)

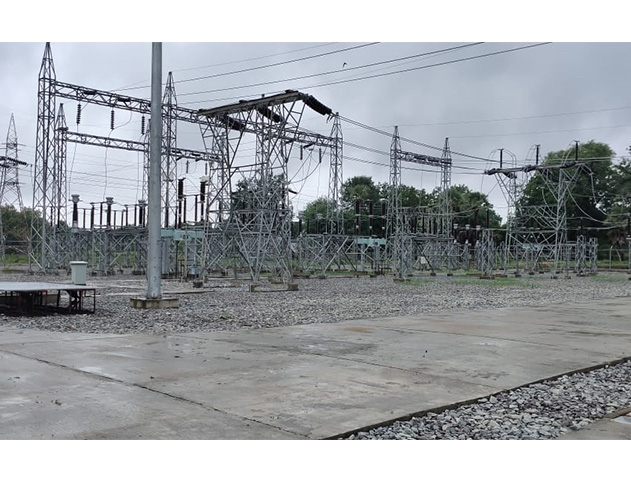

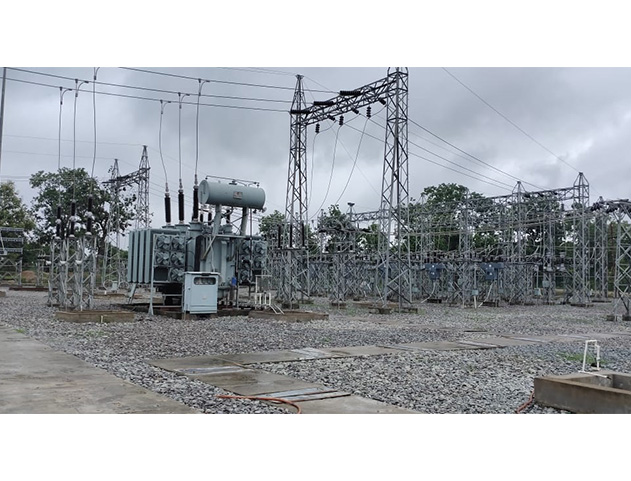

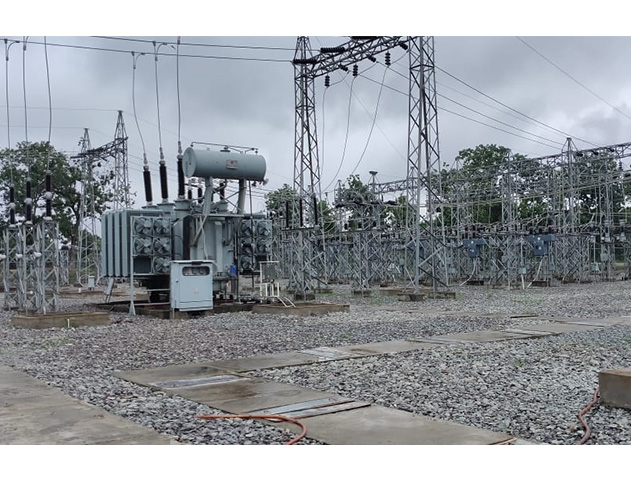

  • Substation voltage: 16 substations of voltage range of 220kv ,132kV and 33kV
  • Project Type: Automatic Data Logging System (ADLS)
  • Protocols Used: Modbus RTU, IEC61850, IEC60870-5-104, SNTP
  • Automation Software and Hardware: Gateway iGrid iGW with built in 4G Modem, iGrid iControl-Substation edition SCADA software

    • Project Description

    CSPTCL is an Indian state utility in Chhattisgarh situated in centre-east part of India.

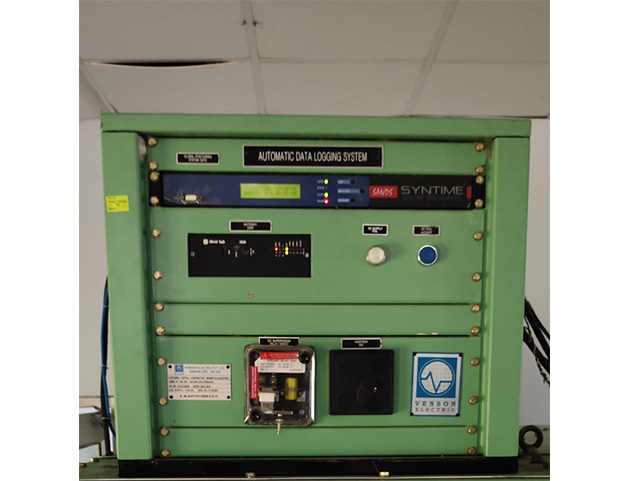

    CSPTCL has been following the automation methodology of automatic data logging system (ADLS). In ADLS, the data from communicable protection relays and energy meters is read in the gateway(iGrid iGW). The data from the gateway is read in the local SCADA system at the substation.

    The SCADA system is a stand-alone system with provision to view the protection status, alarms, events are collected from the IEC61850 relays. Modbus communication is used to communicate and collect the data from energy meters. The iGrid iGW gateway in the substation is collecting the relay and meter information. The gateway also synchronises the time from GPS (Global positioning system) system.

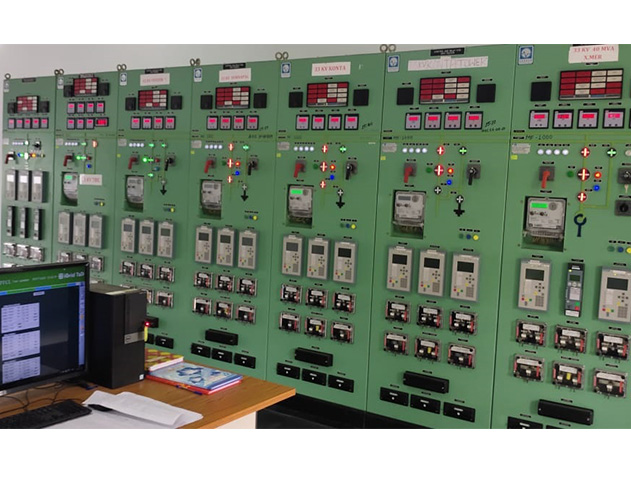

    The local SCADA system (iGrid iControl) is installed in the substation computer.

    The local SCADA shows online status of the substation by means of SLD screen shown in the iControl SCADA. There are also Voltage wise screens, individual bay screens, metering information screen and architecture screen shown in the SCADA. These screen displays the information of the switch gear equipment, protection status and metering details.


    Silent features of this project

  • The SCADA generates the Energy management reports (EMS) as per requirement of the customer. The reports are generated for the energy parameters considering the multiplication factor and metering groups.
  • The reports are flexible to be generated based on user parameters like between dates (covering daily, weekly, monthly), voltage level, bays wise etc. the output is generated in various formats like CSV, HTML, PDF, XLS etc based on user choice.
  • All the standard format reports like tripping reports, daily log sheet, energy loss report, min max report, energy consumption report, voltage variation report etc.
  • The meters are connected in daisy chain method for providing RS-485 network for communication in Modbus.
  • The Ethernet switches are IEC61850 complaint managed level 2 grade. The SCADA software is monitoring the switches at each port level status.

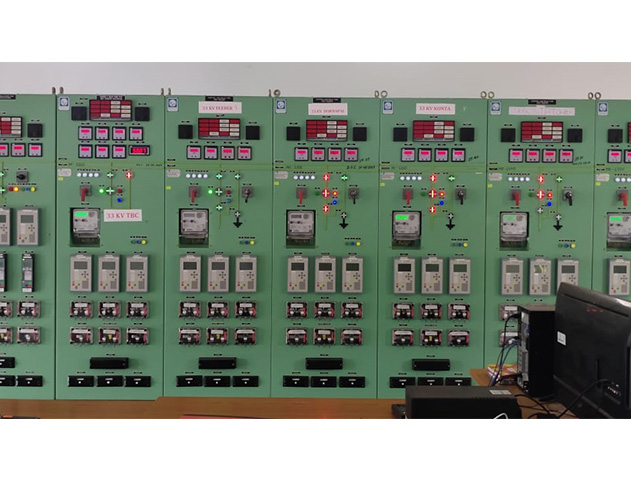

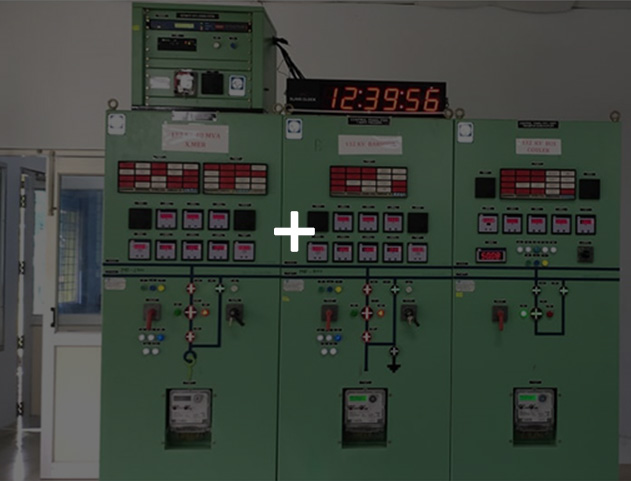

  • The SCADA is monitoring the breaker, isolator status through Bay control unit(BCU). It is also monitoring the alarms, protection status, indication, trip status, transformer tap position etc from 61850 Relays.
  • The substation auxiliary equipment status like battery charging, battery voltage is shown in the screen by reading data battery charger using Modbus.

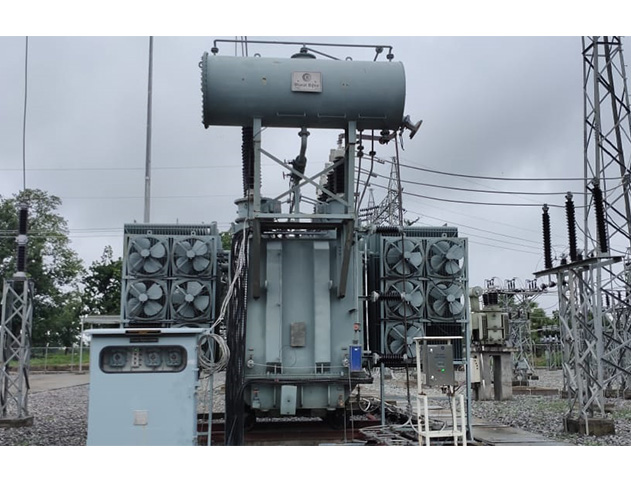

  • The system is used to read the data of transducers, transformer tap position, transformer winding temperature, transformer oil temperature, DC distribution board (DCDB) voltage, AC distribution board (ACDB) voltage
  • SCADA has also line colouring, the user can switch between Flow based and Energy based.
    • Image
