iGW – VM Software

Our substation automation software has been developed to control and monitor any substation (HV & MV). It supports all architectures based on Windows or Linux servers, as well as embedded controllers, acting as a substation gateway, bay controller, RTU or communication front-end for SCADA systems.

The data collection from meters, protection relays, and other IEDs can be managed using any protocol, inlcuding IEC 60870–5, IEC 61850 (MMS/GOOSE), DNP3, DLMS, Modbus or Procome. Further, the iGW-VM can also process and transfer the data to one or multiple control centers and SCADA master stations using upstream protocols such as IEC 104, IEC 101, TASE2.0/ ICCP (IEC 60870–6), IEC 61850–90‑2, DNP3, and Modbus RTU/TCP.

Amongst its state-of-the-art features, the iGW-VM is able to provide load shedding functionalities, high accuracy time stamping/processing (<1ms accuracy) as well as straightforward PLC programming/automation according to IEC 61131–3 via the free iConf tool.

Product Highlights

  • Porting to Linux & Windows platforms, from servers to embedded systems
  • Redundant hot-standby architecture
  • Watchdog and RTC functionalities
  • Extremely scalable and adaptable to any particular present and future needs
  • Simple configuration with iConf tool
  • Secured with IEC62351 cyber security standard
  • PLC automation with IEC61131‑3
  • Numerous communication configurations to freely adjust to substation requirements
  • Simple integration of I/O modules from the iRTU family
  • iGW-VM as Substation Gateway

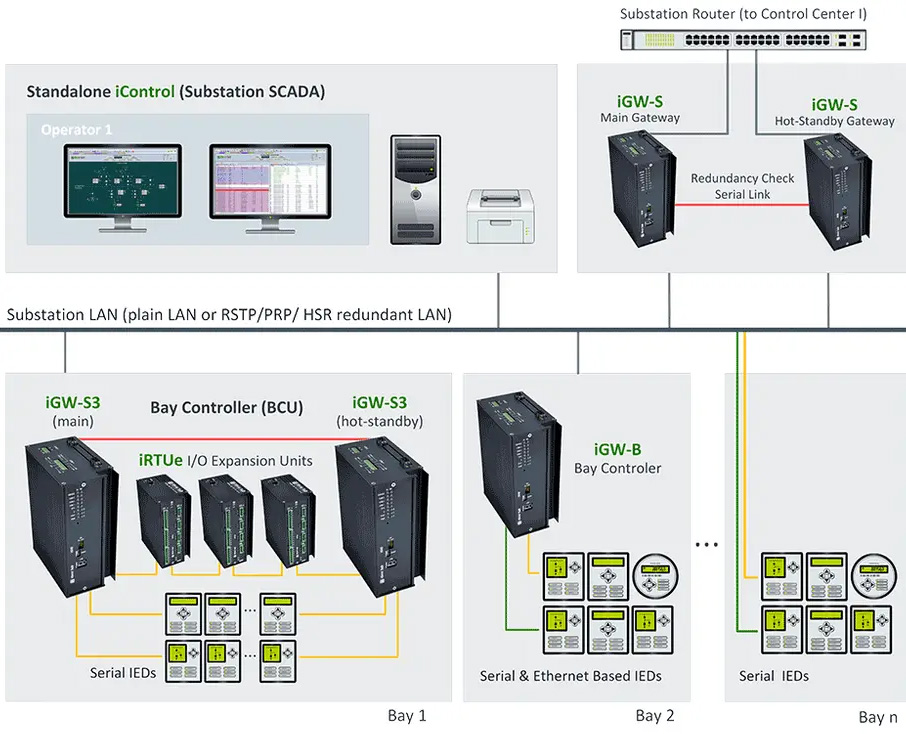

    Example schema of iGW-VM operating as substation gateway with hot-standby redundancy
